Glass Fiber Products

Our success is based on proximity to our customers, premium quality of our products and the consistent advancement of our company management

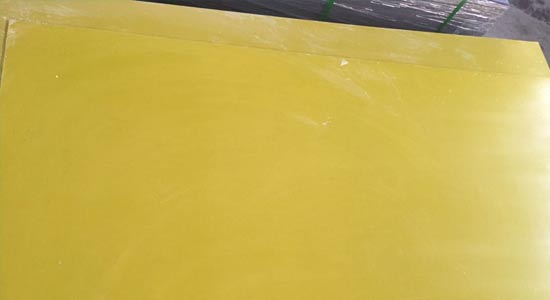

E-Glass Fiber Sheet

Epoxy Fiberglass Sheet, we are specialized Supplier and importer of, Epoxy Fiberglass Sheet, 3240 Epoxy Glass Sheet suppliers/factory, and wholesale high-quality products of Fr4 Sheet R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

Color: Yellow
Thickness: 0.5-150mm
Size: 1000*2000mm/1020*2020mm

Applications:

Used in mechanical, electrical and electronic high insulation structure parts

Used in high-performance electrical insulation requirements:

Chemical machine parts

General machines parts and gear, generators, pads, base, baffle

Generator, transformer, fixture, inverter, motor

Electric insulation component

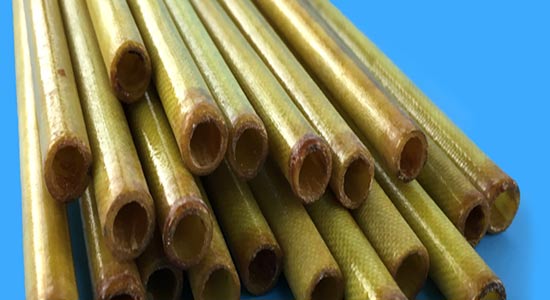

E-Glass Tube

Epoxy Fiberglass Tube, we are specialized Supplier and importer of, Epoxy Fiberglass Tube, 3240 Epoxy Glass Tube suppliers/factory, and wholesale high-quality products of Fr4 Tube R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!

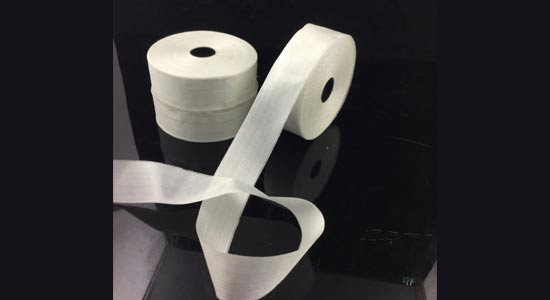

Epoxy Glass Tape

We are specialized supplier of Epoxy Glass Tape. We have the perfect after-sales service and technical support. Look forward to your cooperation.

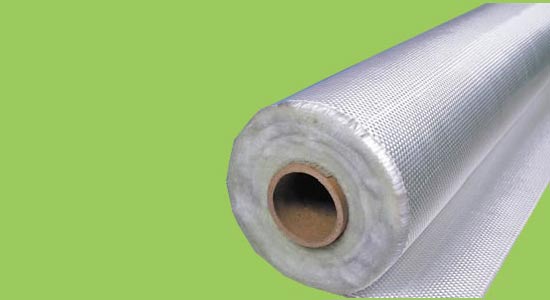

Epoxy Glass Cloth

We are specialized supplier of Epoxy Glass Cloth. We have the perfect after-sales service and technical support. Look forward to your cooperation.

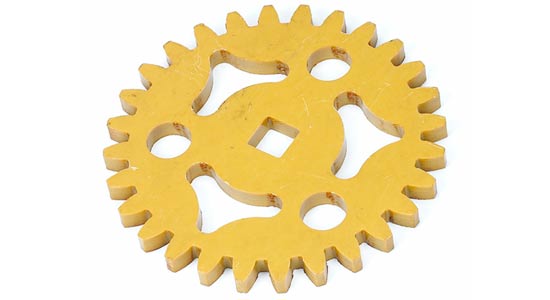

Epoxy Sheet Machine Parts

We are specialized supplier of Epoxy Glass Tape. We have the perfect after-sales service and technical support. Look forward to your cooperation.

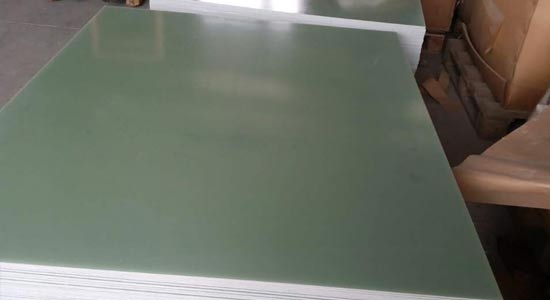

FR-4 Epoxy Sheet

G10/FR4/3240 Epoxy Resin Sheet is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder. This product, first introduced in the 1950's, has characteristics of high strength, excellent electrical properties and chemical resistance. These properties are maintained not only at room temperature but also under humid or moist conditions

Model No.: FR4-3
Material: Composite Material, Epoxy Resin
Free Samples: Available
Surface: Smooth
Color: Green/Aqua/Yellow/Black/Orange
Rated Voltage: ≥40kv
Tensile Strength: ≥400Mpa
Feature: High Impact Strength
Type: Insulation Sheet
Application: High Temperature, Rocket Cases, etc.

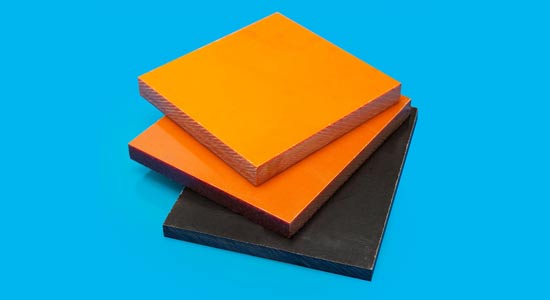

Bakelite insulation

Best Electrical Thermal Bakelite Sheet Phenolic paper Laminated Sheet has very good mechanical behavior and very economical. It is widely used for the electrical motors as important insulation parts and we can use in transformer oil.

The Phenolic paper laminated sheet is a kind of insulation sheet made from phenolic resin and cellulose paper and has good electrical performance under normal condition. The products can be made into insulating parts of electric machinery and electrical equipment that requires high electrical and mechanical performance

Model No.: 3021
Material: EVA, Insulating
Kind: Engineering Plastic Sheet
Water Absorption: 0.12%~0.25%
Contraction Percentage: 0.4%~1.4%
Tensile Strength: （81~130）MPa
Heat Resistance : (continuous): 140℃
Izod Impact Strength: 67kj/m
Density: 1.45
Insulation Resistance after Flooding: 1.0*107Ω
Inflammability (UL94): 94HB
Moisture Absorption: <1.5%
Vertical Bending Strength: ≥120MPa
Vertical Compression Strength: ≥250MPa

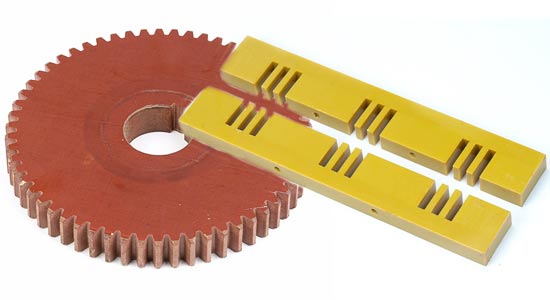

Gear & Machine Part

We are specialized supplier of Epoxy Gear & Machine parts. We have the perfect after-sales service and technical support. Look forward to your cooperation.
