MICA Products

Our success is based on proximity to our customers, premium quality of our products and the consistent advancement of our company management

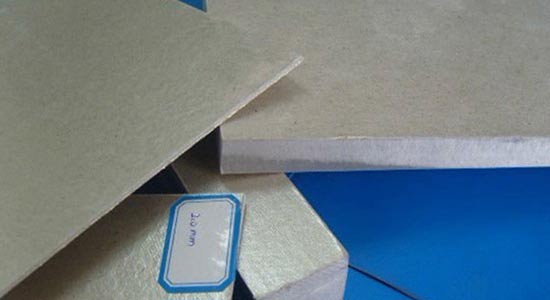

Rigid Mica Plate

Rigid Mica Plate is mica laminates designed for providing outstanding electrical insulation at high temperature, which consist of approximately 90 % Muscovite (or Phlogopite) and 10% high temperature resistant silicone resin.Rigid Mica Plate has acquired UL94V-0 approval with the file No.E231452, TUV approval on environmental safe(the file No. Z05811263 ), SGS-RoHS approval with the file No. SH6148278/CHEM, and has been authorized for use in contact with food products (certificate from the FDA with the file No. RJSSZ060586FDA).

Rigid Mica Plate has two species:

1: Muscovite Rigid Mica Plate, Silver color, Heat resistance: 500 °C / 932 °F (In constant operation), 750 °C / 1382 °F (in intermittent operation).

2: Phlogopite Rigid Mica Plate, Golden/Amber color, Heat resistance: 750°C / 1382 °F (In constant operation), 1000 °C / 1832°F (in intermittent operation) .

Features

Excellent resistance to heat up to 1000°C. It has unique temperature resistance, the maximum working temperature for the Muscovite Mica Plate and Phlogopite Mica plate are approximately 500 °C and 750°C respectively, Peak work temperature are 750 °C and 1000 °C respectively.

Excellent electrical insulation. It has excellent dielectric properties, the maximum dielectric is more than 20KV/mm.

Excellent punch ability. It has good flexural strength and can be cut very precisely using die-stamping.

Environmentally safe. It generates very little smoke even at excessive temperatures.

Available

  • Size: Sheets of 1000 x 600 mm 1000 x 1200 mm 1000 x 2400mm
  • Strips and punched parts : 0, 1 to 2, 0 mm.
  • Thickness: 0, 1mm , 0.15mm , 0.2mm , 0.25mm , 0.3mm , …… 5.0mm .

Flexible Mica Sheet

Flexible Mica Plate is a good heat resistant insulating material, which retains its permanent flexibility at room temperature . The product consists of approximately 90 % Muscovite (or Phlogopite) and 10% high temperature resistant silicone resin. Flexible Mica Plate has acquired UL94V-0 approval with the file No.E231452, TUV approval on environmental safe(the file No. Z05811263 ), SGS-RoHS approval with the file No. SH6148278/CHEM, and has been authorized for use in contact with food products (certificate from the FDA with the file No. RJSSZ060586FDA).

Flexible Mica Plate has two species:

1: Muscovite Flexible Mica Plate, Silver color, Heat resistance: 500 ℃ / 932 °F (In constant operation), 750 ℃ / 1382 °F (in intermittent operation).

2: Phlogopite Flexible Mica Plate, Golden/Amber color, Heat resistance: 750 ℃ / 1382 °F (In constant operation), 1000 ℃ / 1832°F (in intermittent operation).

Features

1. Excellent resistance to heat up to 1000°C. It has unique temperature resistance, the maximum working temperature for the Muscovite Mica Plate and Phlogopite Mica Plate are approximately 5 0 0 ℃ and 750 ℃ respectively, Peak work temperature are 750 ℃ and 1000 ℃ respectively.

2. Excellent electrical insulation. It has excellent dielectric properties, the maximum dielectric is more than 20KV/mm.

3. Excellent tensile strength and easy to form at room temperature.

  • Size: Sheets of 1000 x 600 mm 1000 x 1200 mm 1000 x 2400mm
  • Thickness: 0, 1mm , 0.15mm , 0.2mm , 0.25mm , 0.3mm , …… 3.0mm .

Application

It can be permitted winding or wrapping into place without heating. They are used as linings, covers or backings, as a separating sheet or insulating sheet, the application is: Heat gun, Hair dryers, Fan heaters, Circuit breakers, Transformers, Electric furnaces, Generator, Magnetic Coil, Coil Insulation etc.

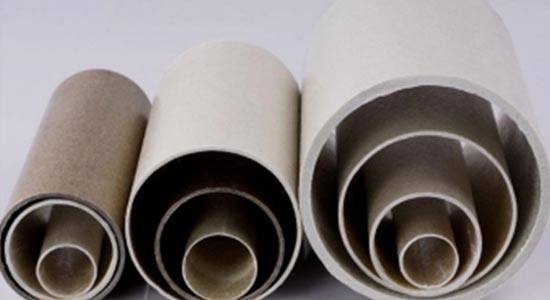

MICA Tube

The mica tube is a hard tube form insulate material which is formed by using mica sheet, muscovite paper or phlogopite paper fixed with glue (by using mica paper glued on single side reinforce material), and processed by roll form.

Specification

Mica tube is of 10-- 700mm length, the internal diameter is 10-- 300mm . The size of Mica tube is over that is to be determined according to the contract or the blue-print supplied by both parties.

Type

Silicone muscovite tube can receive at most 550℃ ; Silicone phlogopite tube can receive at most 600℃. Special type MICA TUBE can be manufactured according to the samples or the blue-print supplied by the customers.

It has good electric capability and a higher mechanical strength, and is suitable to be used as the insulate tube form material in all kinds of electric equipments, motors, furnaces, electric-arc furnaces, other metallurgy industry equipments.

MICA Tape

Fire-Resistant Mica Tape is made from mica paper (phlogopite paper, muscovite paper and synthetic mica paper) and electrical grade alkali free fiberglass cloth which are laminated together by silicone resin (2 layers) or laminated together with polyester film (3 layers).Depending on the different type of mica paper and different layers of lamination. We supply a variety of mica tape type with very specific characteristics.

Features

Smooth surface with uniform thickness
Excellent electrical insulation
Excellent fire resistance
High flexible and soft application
To be widely used for cable and wire industry

Available

Thickness 0.10mm to 0.14mm
Roll width: 5mm to 1000mm
Special dimension on request

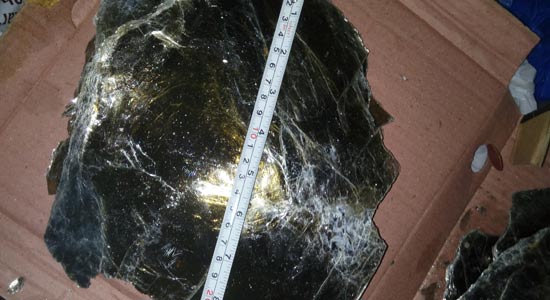

Mica Stone

Mica Blocks are available in various types Ruby mica blocks, Green mica blocks and can be cut according to the specifications required by the clients. Our team of skilled technicians manually grade and cut the mica blocks to eliminate defects in the finished product.

These blocks are fabricated into a myriad range of products having numerous applications in diversified fields. The dressed sheets of mica with a minimum thickness of each sheet 0.18mm (0.007 inch) are called Mica Blocks.

Mica Stone Sheet

Mica Blocks are available in various types Ruby mica blocks, Green mica blocks and can be cut according to the specifications required by the clients. Our team of skilled technicians manually grade and cut the mica blocks to eliminate defects in the finished product.

These blocks are fabricated into a myriad range of products having numerous applications in diversified fields. The dressed sheets of mica with a minimum thickness of each sheet 0.18mm (0.007 inch) are called Mica Blocks.
